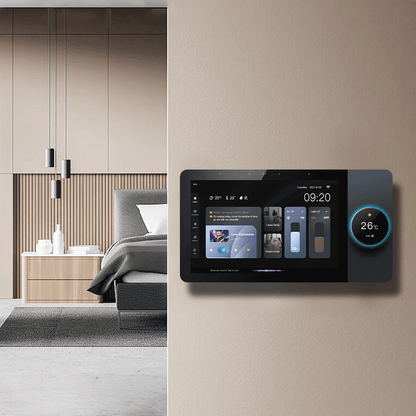

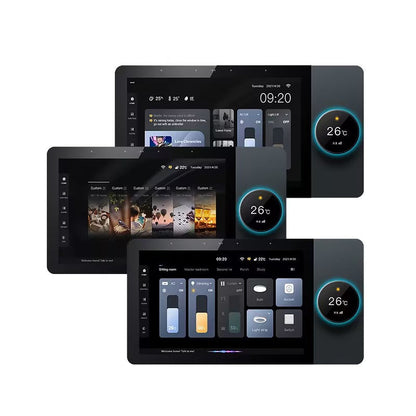

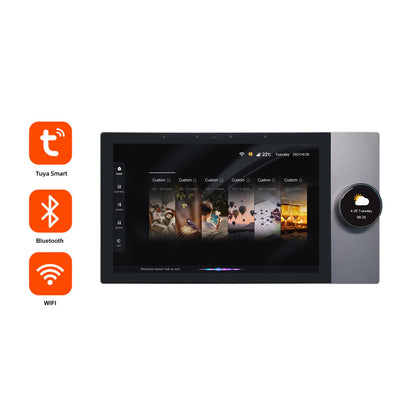

Anjielo 10-inch high-definition multi-functional central controller host with built-in knobs, wall-mounted and concealed installation structure, and remote app control capability.

$241.69 USD

Sale Sold out

Shipping calculated at checkout.

model AN-61017

Quantity

10-inch Central Control Panel Manual

Host function introduction:

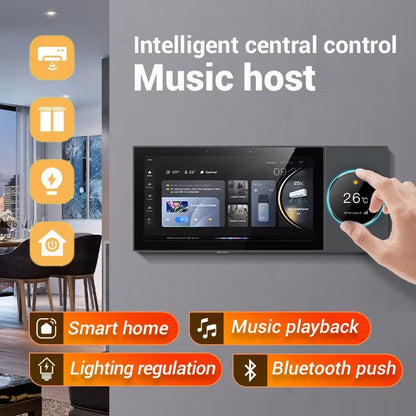

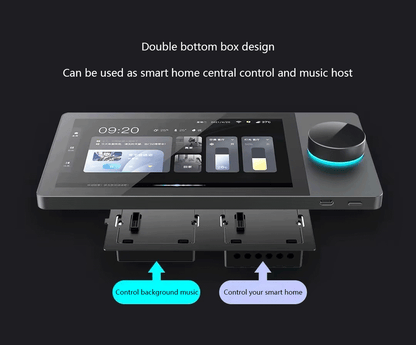

1. Multi-function central control host: with knob screen control, the bottom

shell support single 86/ double 86 bottom shell, according to user needs to

combine, the default is double 86 bottom shell; Intelligent central control

pan + intelligent background music pan.

2. This product supports smart home control (TmallIOT/ TUYA 1OT, the

specific version shali prevail).

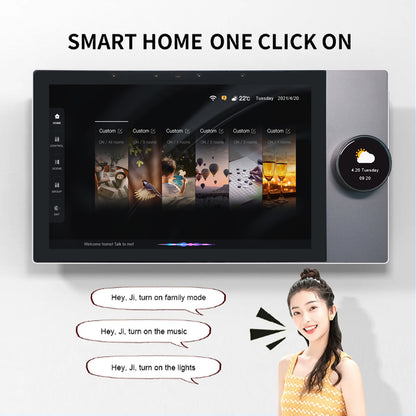

3. Authentic music, weather inquiry, children's story, crosstalk sketch, opera,

etc.

4. Capacitive full screen touch, 10 inch IPS display,1280*800 resolution.

5、Music playback: support MP3, WAV, WMA, FLAC, DTS, APE, AC3, OGG

and other audio formats.

6、Bluetooth: Support mobile phone search connection host can also

support the search connection Bluetooth speaker.

7. External sound input: support external sound source input to the

machine, amplification output.

8. Time calendar: Supports clock and calendar display.

9. Set function: Set host functions.

10. Memory card function: external TF card, supporting 32GB TF card.

11. USB function: External USBcard,supporting 32GB USB.

12. Multiple loop playback mode: support single play, random play,

sequential play, single loop, all loop playback mode .

13. Screen saver display time function: After setting the screen saver,

the screen saver can display public, lunar calendar, week, time.

14. Supports power-on and power-on.

15. Supports online firmware upgrade.

16. Supports wired Internet connection and WIFI connection.

17. 485: can support external input control, can also output control of

external intelligent devices.

18. Horn switch: the host supports the size of the horn switch, can

use its own large horn and small horn.

Parameter configuration:

Name	Multifunctional Central controller host	Screen	10-inch 800*1200 multi-touch
System	Android11	CPU	quad-core Cortex 1.8ghz
RAM	2GB	ROM	8GB
Power input	AC100~240V ,50/60Hz	RS485	Half-duplex 3.5MM interface terminal
Output Impedance	4-8Ω	Total harmonic distortion	0.03%(1W,1KHZ）
Frequency Range	20Hz-20Khz	Audio To Noise Ration	98dB
Adjustment knob	1.28 inch knob color screen	Power of relay	Single channel ≦2*200W
Relay	Single channel ≦2*200W	Speaker Power	2（10-25W）/4(10-25W)（MAX）
Wired Network	0M/100M adaptive Ethernet	WIF	802.11b/g/n wireless protocol 150Mbps 2.4GHz
Zigbee	802.15.4 PHY/MAC Zigbee network protocol stack	Bluetooth	Bidirectional Bluetooth connection
Product size	29716211.5MM	Weight	1.85KG
The box size	Standard single 86/ pair 86	IOT	Tuya
Wireless protocol	Wi-Fi ,Bluetooth ,Zigbee
Operating temperature	0℃~40℃
Operating humidity	5% to 90%RH non-condensing
Functional support

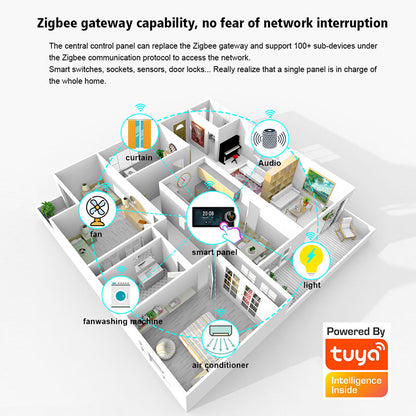

Gateway function	Zigbee gateway capability, can connect 50+ sub-devices, multi-category TUYA ecological equipment control.
Local switch	Support local 2-way switch, can be used for room lighting line use, such as living room lights, bookcase lights, etc
Music's play	Support voice on-demand online music, Bluetooth, TF card, U disk, AUX play music.

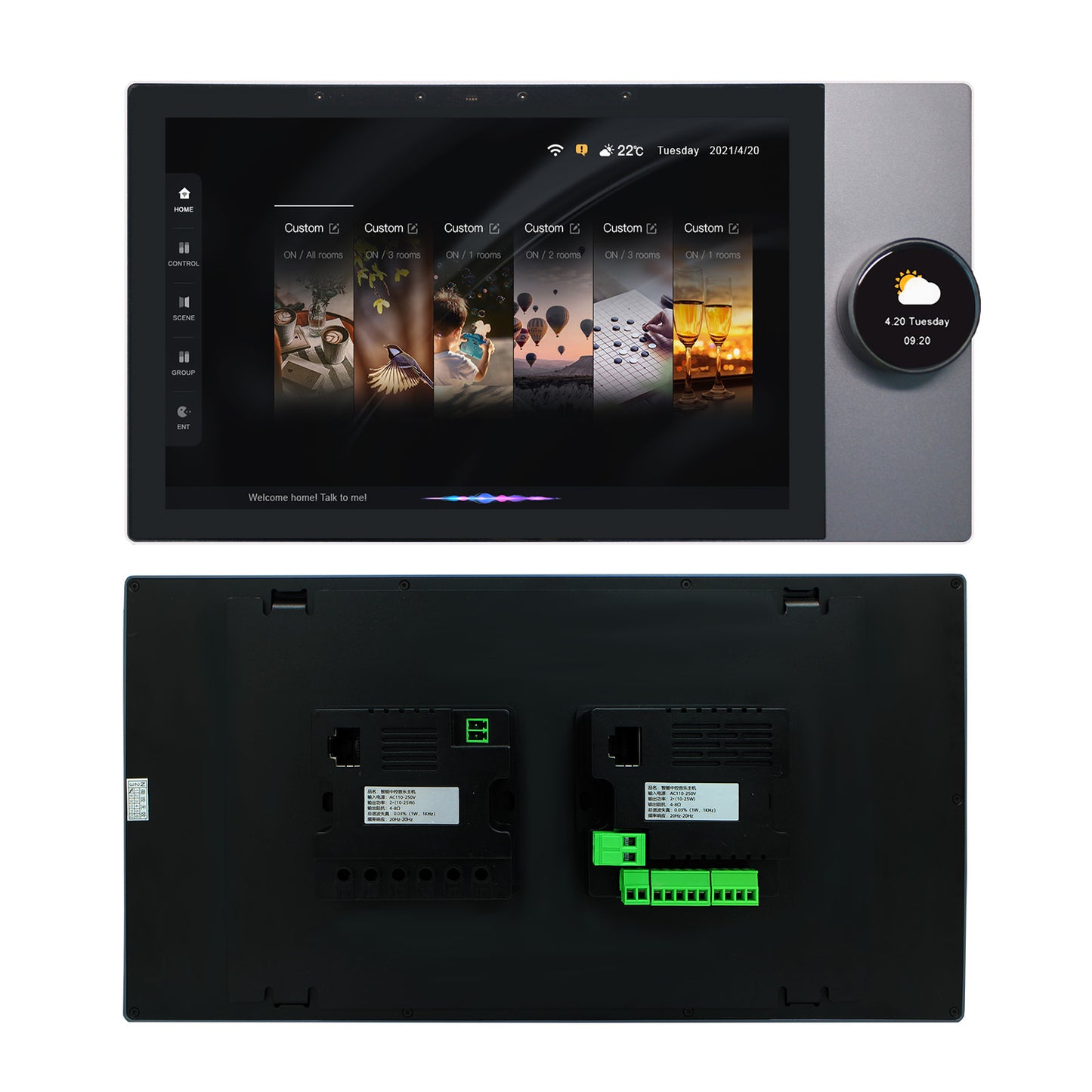

External Interface Diagram:

Combination 1: (base case for background music + 2-way relay base case)

External interface description

1. Button: long press to switch on/off, short press to lock screen/connect lock.

2. TF card, can be inserted TF card, maximum support 32G.

3. Reset key: long press to restore factory settings.

4. MICROUSB: external U disk; for upgrading.

5. Built-in Speaker：Built-in 2W small speaker, comes with speaker.

6. Mic: for voice pickup.

7. Zero-fire power supply: connect to AC220V power supply.

8. Lighting control, maximum support 200W each way.

9. Light control, maximum support 200W each way.

10. wired network port (only one of them can be used when there are two

power supplies).

11. 485 interface: connect to 485A +485B to realise 485 control. (Only one of

the two chassis can be used).

12. 220V power supply (mainly for amplifier power supply).

13. 485 interface: connect 485A +485B to realise 485 control. (Two chassis

can only used).

14. audio input line: audio line (three-core shielded line: commonly known as

microphone line), RVVP2X0.5, RVVP2X0.75, connected to AUX L + AUX R +

GND. external audio input.

15. audio output: audio cable (three-core shielded cable: commonly known as

microphone cable), RVVP2X0.5, RVVP2X0.75, connected to OUT R +OUT L +

GND, can be connected to other amplifiers.

16. Speaker: speaker wire (200-core), RVH2X100, RVH2X200 connect SPK L+

SPK L-, speaker less than 30W.

17. Speaker: speaker wire (200-pole), RVH2X100, RVH2X200 to SPK L+ SPK L-,

speaker less than 30W.

18. Wired network port (only one of them can be used when there are two

power sources).

Combination 2: (this combination has a double 86 backing case)

8. Connection AC90-250V power supply (mainly to the amplifier power supply)

9. audio output: audio cable (three-core shielded cable: commonly known as

microphone cable), RVVP2X0.5, RVVP2X0.75, connected to OUTR + OUTL + GND, c

an be connected to other amplifiers.

10. Speaker: speaker wire (200 core), RVH2X100, RVH2X200 connect to SPKL+SPKL-,

speaker less than 30W.

11. Speaker: speaker wire (200 core), RVH2X100, RVH2X200 to SPKL+SPKL-, speaker

less than 30W.

12. 220V power supply (mainly for amplifier power supply).

13. 485 interface: connect 485A+485B can achieve 485 control. (Two chassis can

only use one).

14. audio input line: audio line (three-core shielded line: commonly known as

microphone line), RVVP2X0.5, RVVP2X0.75, connected to AUXL + AUXR + GND. ext

ernal audio input.

15. audio output: audio cable (three-core shielded cable: commonly known as

microphone cable), RVVP2X0.5, RVVP2X0.75, connected to OUT R +OUT L + GND,

can be connected to other amplifiers.

16. Speaker: speaker wire (200-core), RVH2X100, RVH2X200 connect SPK L+ SPK L-,

speaker less than 30W.

17. Speaker: speaker wire (200-pole), RVH2X100, RVH2X200 to SPK L+ SPK L-,

speaker less than 30W.

18. Wired network port (only one of them can be used when there are two power

sources).

Note: Use on one of the bottom boxes alone any of the bottom boxes can work independently.

Two way to power on:

Buyer Questions & Answers

Q: Are you a real manufacturer/factory?
A: Yes, our company specializes in producing smart home smart security real manufacturer/factory.

Q: Are you able to provide OEM&ODM service?
A: Yes, we are able to provide OEM&ODM service and to provide professional advices to both product design&marketing and business planning.

Q: How to place an order if I want to buy some product from you?
A: You can place an order directly on our website, or contact us directly for offline purchase (customized and ready to ship products), after you confirm the products you want to buy from us, I will send you a proforma invoice or contract, or you send us a contract.

Q: How to delivery goods to me?
A: We provide delivery by airplane, by train and by ship.

Q: What's your delivery time?
A: Negotiable

Q: What terms of payment do you offer?
A: Negotiable

Q: Hello, I don't know the unlock code of the device, it's six numbers.111111, 222222, 123456 are not correct, please let me know.

Q:Does anyone know the default pass to open the door using Tuya?
A:Hello, the initial password is 888888.

Q: Can connect to 5G wifi？
A:NO，ONLY 2.4G wifi can be used.

Q：I'm not capable. I don't activate the wifi on the monitor
A: Hello, in this case, the wifi of the screen is not successfully connected, you need to contact the seller or technical staff ,Add whatsapp:+8615913473606 it is best to shoot a video in advance, so that we can quickly tell you the solution

Q：What kind of cable to use to connect the screen to the phone?
A:Hello, you can use the cable from our store, https://anjielo.myshopify.com/admin/products/6064868556959
which is better, or CAT5 OR CAT6, but there will be requirements for length and quality, please contact the seller for details

Q:How to connect to Tuya?
Product Support ：YouTube:www.youtube.com/@anjielosmart

TikTok: Search "Anjielo Smart" on TikTok Email : yuyunzhu@anjielo.com; sales@anjielo.com，Or add whatsapp:+8617336198736

Q:During the process of adding a device, it shows that there is no permission to add a device, what should I do?
A: Hello, first click on the network on the screen, select the DEFAULT option, restart the screen to add the device again, if you still cannot add the device, please contact the seller

Q:The doorbell keeps ringing
A:If the outdoor station does not have a card swipe function, the outdoor station needs to be set to “don’t support access card” mode;If the outdoor station supports card swiping, the outdoor station needs to be set to “support card “ mode.

Q:When someone presses the doorbell, the device is working but the doorbell does not ring.
A:Please set the screen to home screen mode, the doorbell will ring when you press the doorbell；If the doorbell is set to message mode, it will not ring when you press the doorbell.

Q:The distance between my doorbell and the screen is a bit far, and the image is blurry. What should I do?
A:If the distance between the screen and the doorbell exceeds 30 meters, the doorbell needs to be powered separately.

Q:I purchased two screens, how do I install them?
A:Set the screen connected to the doorbell as the main screen, set the digital ID to 1, connect the next screen using the out port, connect the second screen to the in port, and then change the digital ID to 2

Q:My video is blurry, black and white, or even no image. What should I do?
A:Please set the settings to PAL 1080 and automatic, or you can adjust it on the back of the doorbell https://www.youtube.com/watch?v=OY1BSGgwSkc

Q:How do I add my fingerprint and password?
A:Please refer to this video https://www.youtube.com/watch?v=8Adt1uQd53Q,

Q:What should I do if my device suddenly cannot connect to the Internet?
A:Power off and restart the device, or update the system.

Q:My video intercom has been working fine for two weeks, but suddenly I can't hear anyone else's voice coming through the doorbell. What's the reason?
A:Please check the line settings to see if the audio cable is dropped or has poor contact or falls off. You can also plug it into door2

Q:My lock is connected to the doorbell, but it won't open the door. What's going on?
A:Please check if there is any error in the wiring. If it cannot be unlocked when connected to the 2PIN port, please connect to the 3PIN port to power the lock. At the same time, you also need to pay attention to distinguish between NO and NC.

Q:I bought 64218+61010, connected it to the power supply, and found that the LED indicator on the screen did not light up. What is the reason?
A:Please note that if you buy 64218 or 64202, there is a separate 2PIN line. We pack them separately and mark them before delivery. You cannot use the doorbell's 2PIN line to connect to the screen's power supply because their positive and negative poles are opposite. The correct connection should be the red line close to the LED indicator. If the connection is correct and it still doesn't light up, it may be a problem with the motherboard.

Q:Does the smart central control panel support Bluetooth connection?
A;Yes, but the Bluetooth function is different.
Receive function: (can connect to mobile phone, can not connect to Bluetooth speaker: Q7)
Transmit function (can connect to Bluetooth speaker, can not connect to mobile phone: 10 inch, 12 inch
Transmitter and receiver: (4 inch, 6 inch (F6), 6.8 inch, 7 inch (F7), 8 inch (F8)

Q:Does the video intercom device support connecting to sliding doors? If so, how can I connect it?
A:Support. Use door bell “COM” and “NO” two wired connect to silding gate opener

Q:Hello, since there are power outages here from time to time, can I use a DC12V battery pack to power the video intercom equipment?
A:The video intercom doorbell is not low power and needs continuous power supply, and video transmission requires a larger current, so it cannot be powered by a battery pack.
