Anjielo 6-inch high-definition LCD smart home interconnection APP remote control operation control panel for smart home devices

$145.66 USD

Sale Sold out

Shipping calculated at checkout.

model AN-66013

Quantity

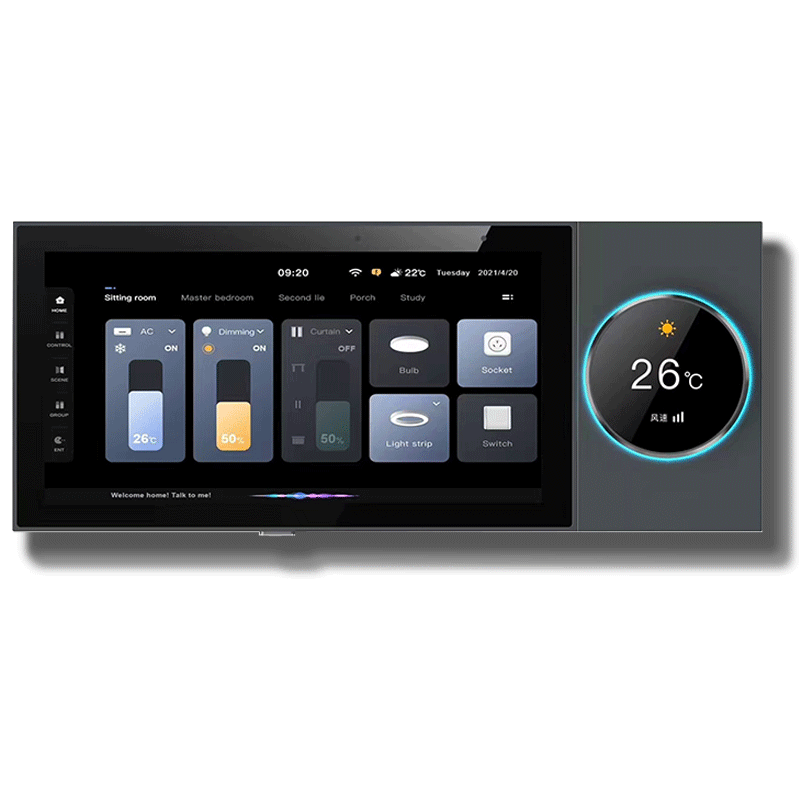

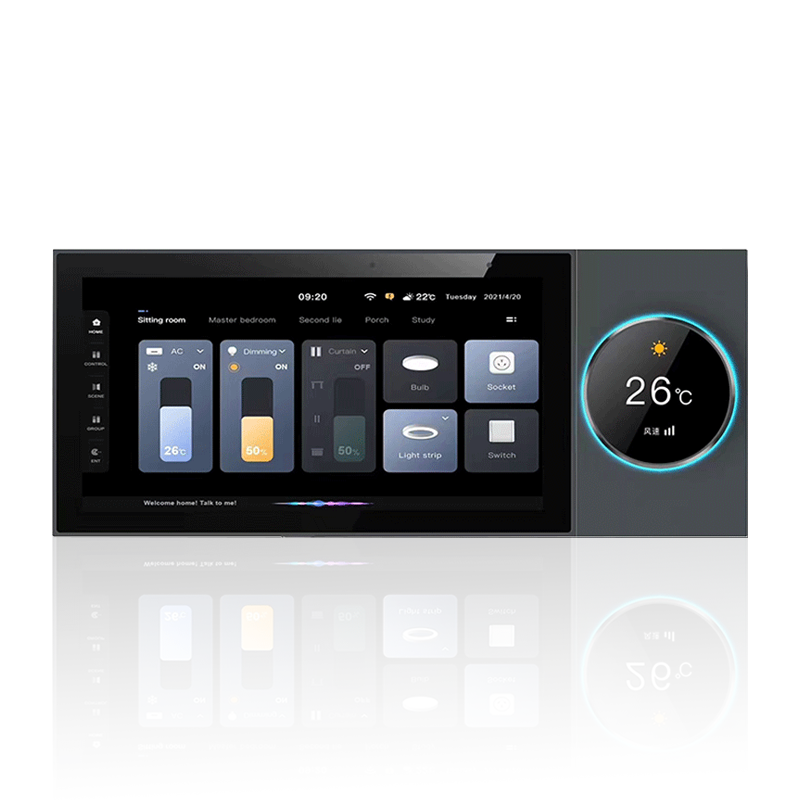

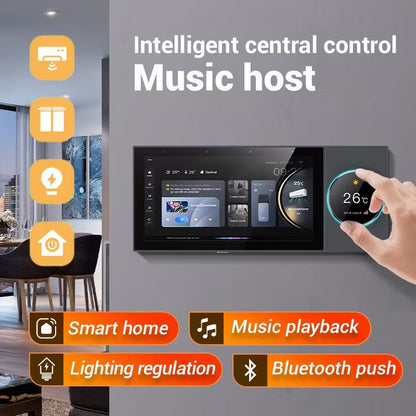

6-inch smart panel

Features

● 86 wall-mounted concealed structure, simple installation mode, no need to modify the wall, and can be matched at will.

● 6-inch high-definition LCD, G+FF process multi-touch, high ratio with switch

● It comes with a knob design, which allows you to switch devices by pressing, and adjust lights, curtains, volume and other devices by rotating the knob.

● Smart home interconnection, scenario mode, Zigbee gateway function, device automation, and remote APP control.

● You can easily achieve precise control of lights, curtains, air conditioners , and other smart devices by touch without any hands-on, and is compatible with some Tuya ecological devices.

● Customized linkage scenes can quickly switch scene modes.

Function Introduction

1、This host is connected to Tuya smart home. You can scan the code through the Tuya app.

to bind this host. After the binding is successful, you can control Tuya smart home.

2、Cortex1.5GHZ quad-core CPU, 6-inch multi-touch capacitive screen, 1440*720 IPS high- definition resolution display; host system: Android 8.1 system.

3、Supports adjusting air conditioning, volume, curtains, and lighting percentage by turning knobs; switching devices by pressing.

4、Support 2-way relay to control lights (relay version).

5、Support voice-on-demand music, stories, weather, jokes, crosstalk, and sketches;

6、Support voice volume adjustment.

7、Support mobile APP to play music, stories, and manage host-related APPs

8、Supports pairing with external Bluetooth devices such as mobile phones to achieve audio playback, can bidirectionally control the playback of music from external Bluetooth devices, and can set Bluetooth to be on or off.

9、Support wallpaper switching function.

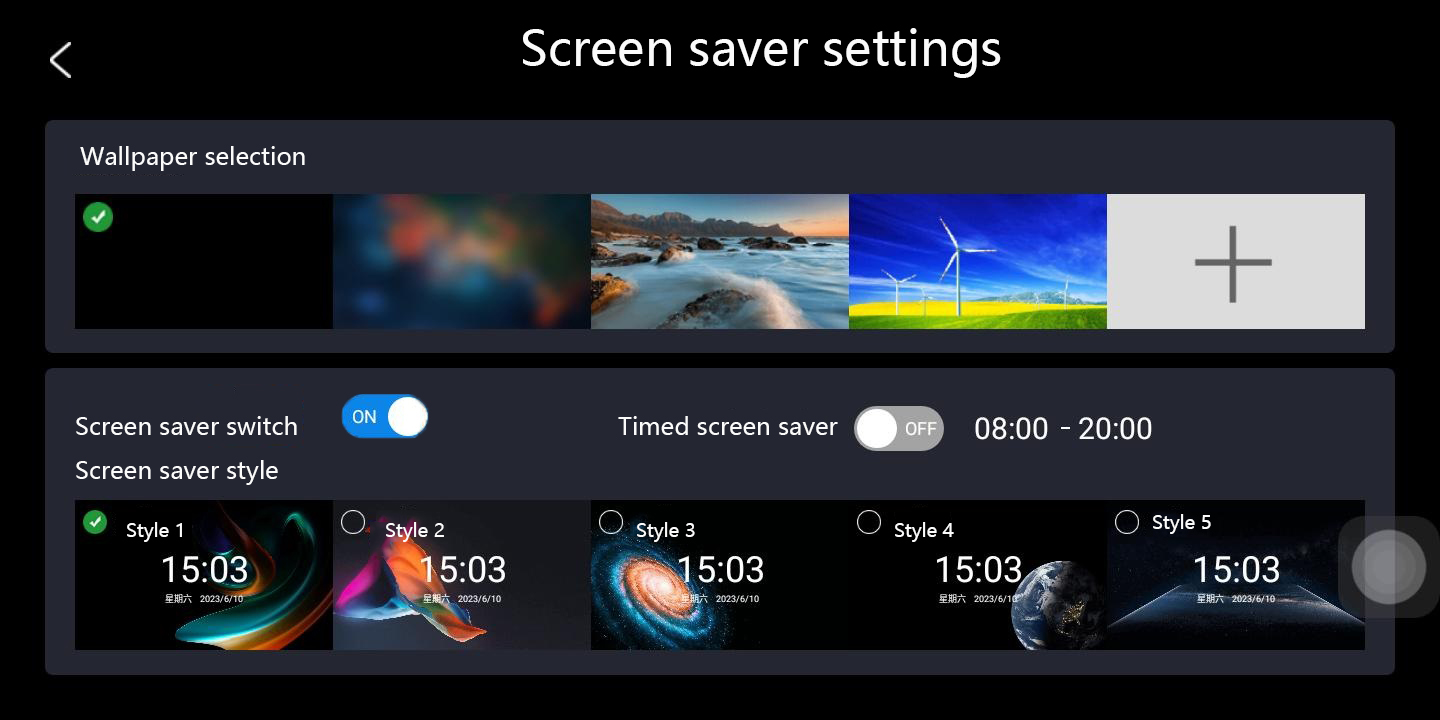

10、Support screen saver switching function.

11、Support scene music function.

12、Supports multiple timed music playback; you can set any time, and can choose to start the device at a scheduled time to play a specified song.

13、Support scheduled host restart function.

14、Support installation of various Android software.

15、Support external devices to control this machine via 485.

16、Support audio input function.

17、Support audio output function.

18、Support TF card and MICRO2.0USB interface, USB can be used

for external hard disk.

19、Support TF card firmware upgrade.

20、Support OTA online upgrade.

Parameter configuration
CPU	Quad-core Cortex 1.5GHZ	Firmware	Android8.1
RAM	2G	Screen	6-inch 1440*720 multi-touch
ROM	8G	Relay	Single channel ≦2*200W
Wired network	10M/100M adaptive Ethernet	RS485	Half-duplex 3.5MM interface terminal
WIFI	802.11b/g/n wireless protocol 150Mbps 2.4GHz	Zigbee	802.15.4 PHY/MAC Zigbee network protocol stack
power input	AC100~240V ,50/60Hz	Knob screen	1.28 inch knob color screen
Speaker output	2* (10-25W) (MAX) (depending on selected hardware)	Power amplifier parameter	Frequency response: 20Hz-20Khz SNR: 98dB
Output impedance	4-8Ω	Weight	0.55KG
Product size	208 × 86 × 10.5MM	Way to install	86 Wall installation UK
Wireless protocol	Wi-Fi ,Bluetooth ,Zigbee
Operating temperature	0℃~40℃
Operating humidity	5% to 90%RH non-condensing
Functional support
Gateway function	Zigbee gateway capability, can connect 50+ sub-devices, multi-category TUYA ecological equipment control.
Local switch	Support local 2-way switch, can be used for room lighting line use, such as living room lights, bookcase lights, etc
Music's play	Support voice on-demand online music, Bluetooth, TF card, U disk, AUX play music.

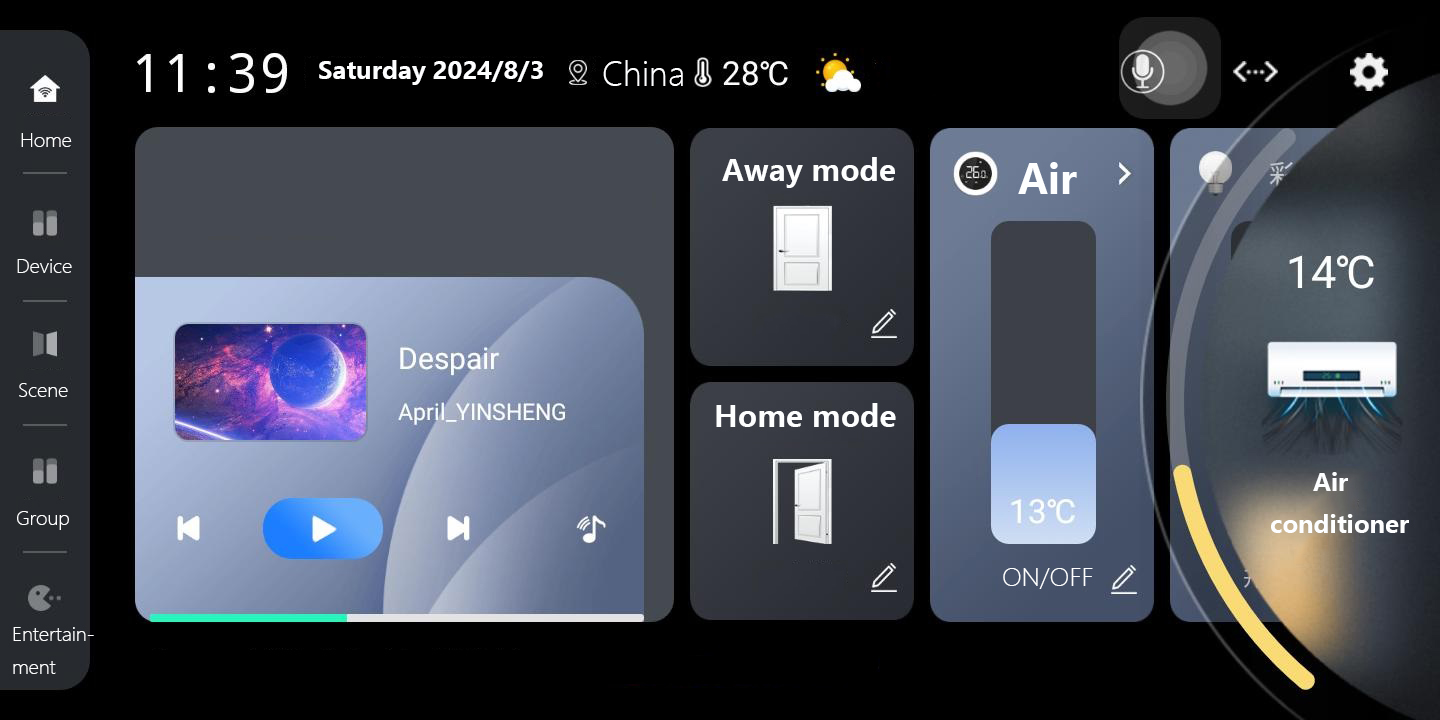

Home Page:

Music player, users can customize and add devices and scenes to the

homepage according to common functions.

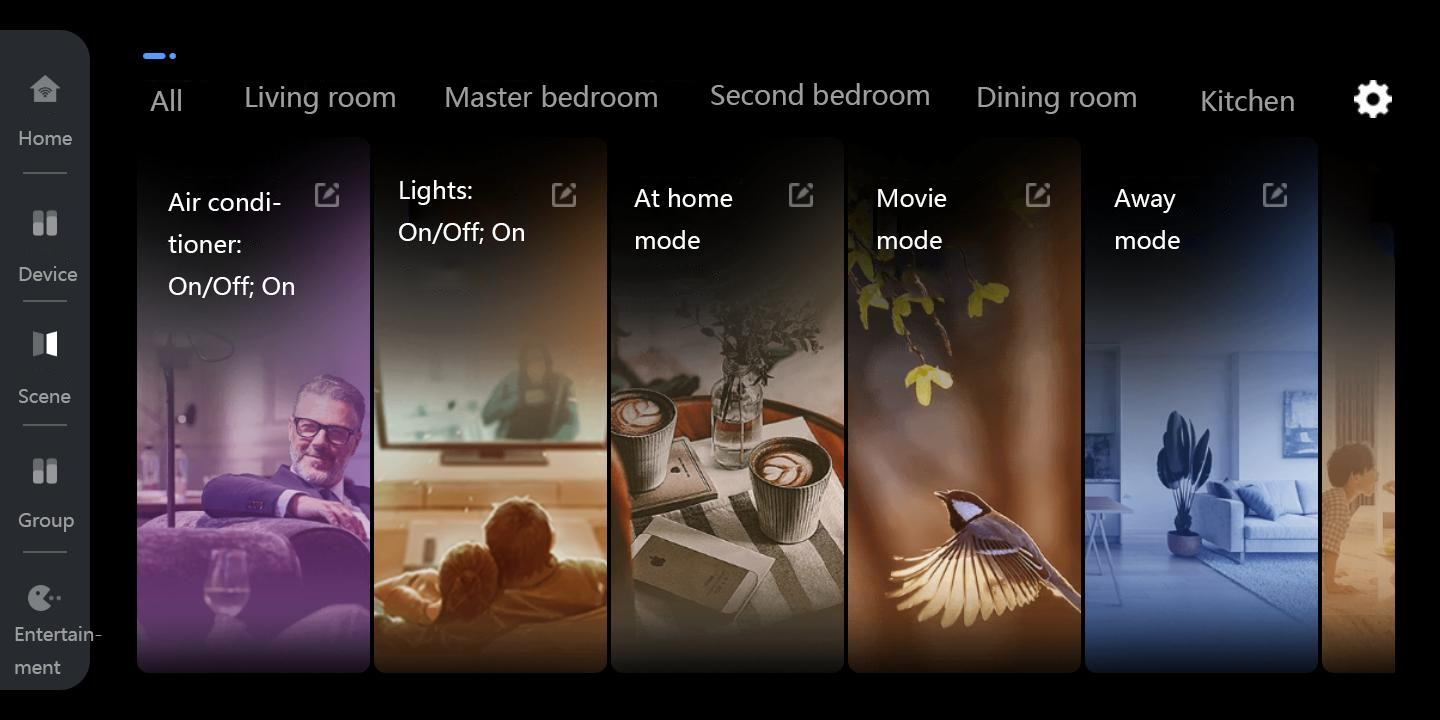

Scene:

Click to execute the scene manually, and click the arrow to edit the scene

interface.

Entertainment Interface:

funInterface and descriptions:

External interface description:

1. TF card: read TF card interface.

2. TYPE-C USB: external USB, can read USB flash drive with adapter cable;

upgrade.

3. Button: short press to lock screen/light up screen; long press to shut down

/restart.

4. Upgrade button: spare upgrade button port.

5. Built-in speaker sound outlet

6. Knob: press to switch devices. Rotate to adjust light brightness, curtains, air conditioning, volume, etc.

7. 485: connect 485A485B to control background music through external devices, and other 485 devices can also be controlled through this machine.

8. Ethernet port: support wired network.

9. Disassembly port: pry open the notch to remove the fixing screws of the cover .

L live wire input N neutral wire input, L1L2 are 2-way switch control lines connected to the corresponding light live wire output (according to the actual connection of the host)

Installation Notes:

● Turn off the main power switch and use a tester to confirm that the live wire in the

dark box is not energized.

●Remove the rear seat and install it in the dark box (as shown in the figure).

●Check the wiring to make sure the copper wires are making good contact with the

terminals and that there are no exposed conductors.

●Use the mounting screws to secure the base to the inside of the dark box and snap

the panel back on.

●Be careful not to overtighten the screws during installation to avoid deformation or

damage to the screen or hardware.

●If you encounter problems during installation, do not press hard to force the

installation. You should first level the wall and check the bracket.

●Pre-embed the provided bottom box, the bottom box installation size: standard 86

box deepened;

●Wires used in this product: multi-strand copper core wires, coaxial cables, audio

cables, speaker cables.

Installation diagram:

Applicable to plastic cassettes that meet JB/T 8593 standard,

with cassette depth ≥ 50mm.

Buyer Questions & Answers

Q: Are you a real manufacturer/factory?
A: Yes, our company specializes in producing smart home smart security real manufacturer/factory.

Q: Are you able to provide OEM&ODM service?
A: Yes, we are able to provide OEM&ODM service and to provide professional advices to both product design&marketing and business planning.

Q: How to place an order if I want to buy some product from you?
A: You can place an order directly on our website, or contact us directly for offline purchase (customized and ready to ship products), after you confirm the products you want to buy from us, I will send you a proforma invoice or contract, or you send us a contract.

Q: How to delivery goods to me?
A: We provide delivery by airplane, by train and by ship.

Q: What's your delivery time?
A: Negotiable

Q: What terms of payment do you offer?
A: Negotiable

Q: Hello, I don't know the unlock code of the device, it's six numbers.111111, 222222, 123456 are not correct, please let me know.

Q:Does anyone know the default pass to open the door using Tuya?
A:Hello, the initial password is 888888.

Q: Can connect to 5G wifi？
A:NO，ONLY 2.4G wifi can be used.

Q：I'm not capable. I don't activate the wifi on the monitor
A: Hello, in this case, the wifi of the screen is not successfully connected, you need to contact the seller or technical staff ,Add whatsapp:+8615913473606 it is best to shoot a video in advance, so that we can quickly tell you the solution

Q：What kind of cable to use to connect the screen to the phone?
A:Hello, you can use the cable from our store, https://anjielo.myshopify.com/admin/products/6064868556959
which is better, or CAT5 OR CAT6, but there will be requirements for length and quality, please contact the seller for details

Q:How to connect to Tuya?
Product Support ：YouTube:www.youtube.com/@anjielosmart

TikTok: Search "Anjielo Smart" on TikTok Email : yuyunzhu@anjielo.com; sales@anjielo.com，Or add whatsapp:+8617336198736

Q:During the process of adding a device, it shows that there is no permission to add a device, what should I do?
A: Hello, first click on the network on the screen, select the DEFAULT option, restart the screen to add the device again, if you still cannot add the device, please contact the seller

Q:The doorbell keeps ringing
A:If the outdoor station does not have a card swipe function, the outdoor station needs to be set to “don’t support access card” mode;If the outdoor station supports card swiping, the outdoor station needs to be set to “support card “ mode.

Q:When someone presses the doorbell, the device is working but the doorbell does not ring.
A:Please set the screen to home screen mode, the doorbell will ring when you press the doorbell；If the doorbell is set to message mode, it will not ring when you press the doorbell.

Q:The distance between my doorbell and the screen is a bit far, and the image is blurry. What should I do?
A:If the distance between the screen and the doorbell exceeds 30 meters, the doorbell needs to be powered separately.

Q:I purchased two screens, how do I install them?
A:Set the screen connected to the doorbell as the main screen, set the digital ID to 1, connect the next screen using the out port, connect the second screen to the in port, and then change the digital ID to 2

Q:My video is blurry, black and white, or even no image. What should I do?
A:Please set the settings to PAL 1080 and automatic, or you can adjust it on the back of the doorbell https://www.youtube.com/watch?v=OY1BSGgwSkc

Q:How do I add my fingerprint and password?
A:Please refer to this video https://www.youtube.com/watch?v=8Adt1uQd53Q,

Q:What should I do if my device suddenly cannot connect to the Internet?
A:Power off and restart the device, or update the system.

Q:My video intercom has been working fine for two weeks, but suddenly I can't hear anyone else's voice coming through the doorbell. What's the reason?
A:Please check the line settings to see if the audio cable is dropped or has poor contact or falls off. You can also plug it into door2

Q:My lock is connected to the doorbell, but it won't open the door. What's going on?
A:Please check if there is any error in the wiring. If it cannot be unlocked when connected to the 2PIN port, please connect to the 3PIN port to power the lock. At the same time, you also need to pay attention to distinguish between NO and NC.

Q:I bought 64218+61010, connected it to the power supply, and found that the LED indicator on the screen did not light up. What is the reason?
A:Please note that if you buy 64218 or 64202, there is a separate 2PIN line. We pack them separately and mark them before delivery. You cannot use the doorbell's 2PIN line to connect to the screen's power supply because their positive and negative poles are opposite. The correct connection should be the red line close to the LED indicator. If the connection is correct and it still doesn't light up, it may be a problem with the motherboard.

Q:Does the smart central control panel support Bluetooth connection?
A;Yes, but the Bluetooth function is different.
Receive function: (can connect to mobile phone, can not connect to Bluetooth speaker: Q7)
Transmit function (can connect to Bluetooth speaker, can not connect to mobile phone: 10 inch, 12 inch
Transmitter and receiver: (4 inch, 6 inch (F6), 6.8 inch, 7 inch (F7), 8 inch (F8)

Q:Does the video intercom device support connecting to sliding doors? If so, how can I connect it?
A:Support. Use door bell “COM” and “NO” two wired connect to silding gate opener

Q:Hello, since there are power outages here from time to time, can I use a DC12V battery pack to power the video intercom equipment?
A:The video intercom doorbell is not low power and needs continuous power supply, and video transmission requires a larger current, so it cannot be powered by a battery pack.
